Hardware - Remote Monitoring & Control

Hardware - Remote Monitoring & Control

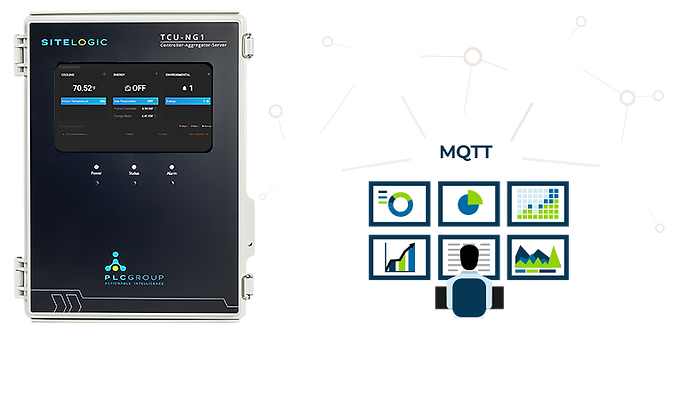

Connectivity with intelligent and non-intelligent assets

All in One

controller, web server, aggregator, protocol converter

Fixed or Modular

upgrade as you grow

On-Site Display

3.5 to 10 inch touch screen

Integration

Modbus RTU/TCP, SNMP, BACnet

Universal Controllers

TCU-NG1

Multi-application controller, gateway, aggregator, and web server
Ethernet, wireless and serial communication options
Multiple sensor inputs and analog and control outputs
Multi protocol support, Modbus RTU/TCP, SNMP, CAN, BACnet
7 inch touchscreen (optional 10 inch)
Storage from 16GB and up

Our Solutions

Inquire now

TCU800-Mini

Fixed configuration
Multi-application controller, gateway, aggregator, and web server
Ethernet, wireless and serial communication options
Multiple sensor inputs and analog and control outputs
Multi protocol support, Modbus RTU/TCP, SNMP, CAN, BACnet
7 inch touchscreen (optional 10 inch)
Storage from 16GB and up

Our Solutions

Inquire now

RMC-1200

Multi-application controller, gateway, aggregator, and web server
Ethernet, wireless and serial communication options
Multiple sensor inputs and analog and control outputs
Multi protocol support, Modbus RTU/TCP, SNMP, CAN, BACnet
Storage from 16GB and up

Our Solutions

Inquire now

Communication Gateways

Maple Edge-I

Multi-application gateway, aggregator, web server, and protocol converter
Ethernet, wireless and serial communication options
Multi protocol support, Modbus RTU/TCP, SNMP, CAN, BACnet
Optional display and IP switch
Storage from 16GB and up

Our Solutions

Inquire now

TULIP-IVT

Multi-application gateway, aggregator, web server, and protocol converter
Ethernet, wireless and serial communication options
Multiple sensor inputs
Multi protocol support, Modbus RTU/TCP, SNMP, CAN, BACnet
7 inch touchscreen
Storage from 16GB and up

Our Solutions

Inquire now

Energy Meters

PCM300

Single or three phase energy monitoring
Ethernet, wireless and serial communication options
Integrated LCD display
Storage from 8GB and up
Provides reports on historical data, energy consumption and more
Built in web based GUI/dashboard for remote monitoring and reporting

Our Solution

Inquire now

Sensors

Temperature and Humidity
PLC-ATHS

Calibrated directly in degree Celsius (Centigrade)
Linear + 10.0 mV/°C scale factor
±2°C accuracy guaranteed at +25°C
Specified for full −40° to +125°C range
Suitable for remote applications
Low cost due to wafer-level trimming

Airflow Differential
PLC-PS-DAF

Accuracy: 0.1 Pa
Flow/pressure range: -12.5 to +125 Pa
Output analog: Radiometric analog voltage
Power consumption: 5.0 Vdc: 3.8 mA typ.
Shift due to temperature variation: 0.5% per 10 degree centigrade
Operating temperature range: -40 °C to 85 °C [-40 °F to 185 °F]

Purpose Built

Designed to interface with intelligent and non-intelligent elements and sensors such as HVACs, generators, ATS, alarms, DC plants, access control and surveillance. All analog, digital, IP and other interfaces are provided keeping the application and budget for the customer. The local display and storage are added as per the customer requirement.

Build your own
